Fasterail Full Balustrade

Product Code: BSF
Fasterail Outdoor steel ball stanchion balustrade industrial commercial made by ENCAT for driveway
Fasterail logo
No weld installation
Choice of supply only or supply & installation
$4,500 ex gst supply & fit *

Availability:
Lead time 7 to 14 business days from time of order

ENCAT RMS specification compliant products for sale in Australia

HEAVY DUTY DESIGNS
FOR CIVIL USE

ENCAT Australian made pedestrian fencing and civil products available direct from the factory

FACTORY DIRECT,
100% AUSTRALIAN MADE

ENCAT Pedestrian fencing and civil products for sale

DELIVERED ANYWHERE
IN AUSTRALIA

ENCAT Modular pedestrian fencing panels

CUSTOM LENGTHS FOR
ANY SITE

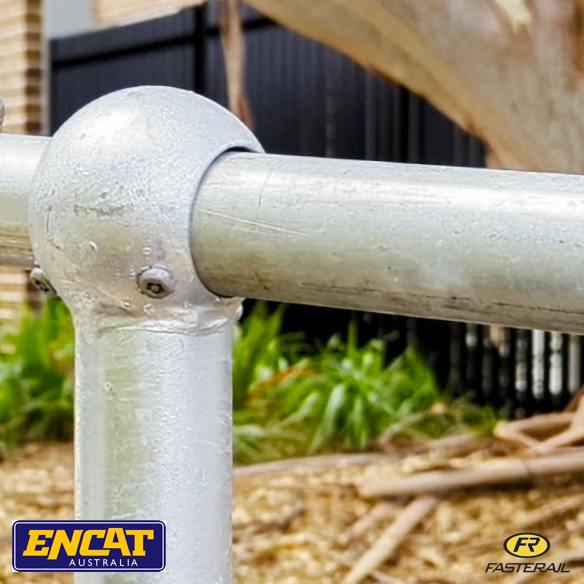

No weld balustrade modular system

Innovative no-weld modular handrail and balustrade

ENCAT is an Australian manufacturer of handrails. Our no-weld modular designs mean there is no need for hot works permits, no toxic fumes & no site shutdowns required. Together with the durable design that we have developed in Australia, our system delivers the lowest total cost of ownership in the industry.

We consider every aspect including the handrail’s ability to handle Australian weather conditions & ensuring that any installation is tamper proof by using Pentaforce tek screws instead of easy to access alternatives found in competitor products.

At ENCAT, we’re revolutionising balustrade and handrail design with our cutting-edge, weld-free Fasterail system. Unlike traditional welded solutions, our modular design offers superior performance, cost-efficiency, and flexibility for any type of site including civil construction, buildings, railways, schools, public use areas, shopping centres, roadways or national parks.
Our products can be installed on cycleways, main roads, on culverts, near waterways or other public infrastructure locations that require pedestrian protection.

Cost-effective and modular
Our products will help you save money compared to the typical high costs associated with traditional welded handrails and balustrades. With Fasterail, you eliminate the need for complex design or on site production which reduces your upfront expenses.

Our pre-fabricated modular components streamline the installation process, allowing for faster project completion, reduction in labour costs as well as long term reductions in maintenance requirements.

Quite simply, removing the need for onsite welding means fewer delays and a more predictable project timeline.

Improved precision
The Fasterail system from ENCAT removes these risks by employing precision-manufactured components using the latest in laser metal manufacturing equipment so that each piece fits seamlessly together. This not only ensures a consistent, high-quality finish but also enhances the durability and longevity of any structure.

Our system is designed to withstand the rigours of high-traffic environments whether indoors or outdoors including harsh coastal conditions, offering a robust and reliable solution.

Adaptable handrail system
Fasterail is incredibly versatile, accommodating practically any project requirement or existing site condition. The modular design makes it easy to adapt the system to different contours or configurations, whether that is navigating complex curves, straight runs or mixed inclines.

This adaptability means you can achieve the exact look and function you need without compromising on quality or performance.

Sustainability
Our no-weld design is not only efficient but also environmentally friendly. By eliminating the need for onsite fabrication, we can help you reduce waste and energy consumption by supporting sustainable construction practices. Additionally, Fasterail’s design prioritises safety, meeting all relevant Australian standards for public safety and accessibility while using locally sourced, recycled, materials.

Why Choose ENCAT’s no weld handrail?
With Fasterail, you gain more than a product; you gain a solution that simplifies construction, reduces costs, and enhances the overall quality of your project. Trust in ENCAT’s expertise to deliver a superior balustrade and handrail system that stands the test of time for your site.

Baseplate or inground outdoor balustrade design choices

Supplier of ball stanchion outdoor balustrade systems with handrails

ENCAT is an Australian manufacturer of civil use metal products that keep people safe. Our Fasterail range has been specifically developed in Australia to keep pedestrians safe in public areas & help councils, site managers or educational institutions reduce their cost of ownership for any location with public use amenities. Since 1989 we have developed, adapted & supplied modular handrail systems and other civil use metal products to councils, shopping centres, schools or building contractors.

ENCAT is an Australian manufacturer of products used in public spaces or civil construction projects. Everything we produce is compliant with Australian laws and requirements. We can custom design, manufacture and install a handrail to suit your existing site conditions and required application. Our modular, no-weld, design means that even if one gets damaged, a piece can easily be replaced.

This is a product that has been developed in Australia to a superior level of production to cater for our harsher climate.

  • No-weld design developed by Australian engineers.
  • Compliant with the Building Code of Australia
  • Compliant with AS1170 Table 3.3 C3 Loading Requirements
  • Compliant with AS 1428 DDA.
  • Certified Welding to AS1554
  • Hot Dip Galvanising to AS1214
  • A superior system that is fully welded.
  • Tamper-proof tek screw screw installation that is out of sight.
  • Locally developed corrosion protection & strength to suit Australian conditions.
  • A long service life to reduce maintenance or replacement costs.
  • Hot dip galvanised after fabrication with posts that can be secured either in-ground with concreted posts, mechanical or chemset fixings into the concrete.


Every modular handrail system is made to suit your specific application with custom measurements & manufacturing, we often see our ball stanchions used in;

  • Car parking areas
  • Fire stairs
  • Building access points
  • Pedestrian walkway areas

We can provide posts in angles ranging from 25-35 degrees. We can powder coat the pieces in any colour required to match your exterior design.

Australian National Construction Code requirements for balustrading

ENCAT has always maintained a strict adherence to meeting or exceeding Australian Standards when we design, develop or manufacture our products. The National Construction Code (NCC) is a uniform set of technical provisions for the design, construction, performance of buildings, plumbing and drainage systems throughout Australia. It is published and maintained by the Australian Building Codes Board, on behalf of and in collaboration with the Australian Government and each State and Territory Government.

When installing commercial balustrades there are certain requirements that must be met to keep people safe in public areas. Below is an excerpt from National Construction Code (NCC) 2014 D2.16 Balustrades or other barriers

(a) A continuous balustrade or other barrier, except for a barrier provided to an openable window covered by D2.24, must be provided along the side of any roof to which public access is provided, any stairway or ramp, any floor, corridor, hallway, balcony, deck, veranda, mezzanine, access bridge or the like and along the side of any delineated path of access to a building, if—

ii it is not bounded by a wall; and

iii its level above the surface beneath, is more than 1 m.

(h) Openings in a balustrade or other barrier must be constructed in accordance with the following:

(ii) For a balustrade or other barrier other than those provided under (c)—

(A) any opening does not permit a 125 mm sphere to pass through it and for stairs, the opening is measured above the nosing line of the stair treads; and

(B) for floors more than 4 m above the surface beneath, any horizontal or near horizontal elements between 150 mm and 760 mm above the floor must not facilitate climbing

3.6 BARRIERS

Barriers, including parapets, balustrades and railings, together with members and connections that provide structural support, shall be designed to sustain the imposed actions given in Table 3.3. The top edge or handrail shall also be designed for the case where a concentrated load of 0.6 kN, positioned for the worst effect, acts inward, outward or downward.

The uniformly distributed line load and the uniformly distributed and concentrated loads applicable to the infill are not additive. They shall be considered as three separate load cases.

Additional information about ENCAT's Australian modular balustrade manufacturing & supply capabilities

ENCAT is one of Australia’s largest designers, manufacturers and suppliers of products used for civil applications and public space installations. Since 1989 we have been designing and manufacturing balustrade or handrail products for outdoor use for councils, national parks, schools, universities and other locations.  Our reputation is second to none with our products installed in locations like Venice Beach in Los Angeles, The Blue Mountains in New South Wales and even local national parks like Minamurra Rainforest.

  • Custom design and engineering consulting for each balustrade installation.

  • New South Wales manufacturing and fabrication with tight quality control.

  • Experience working with difficult to access or busy public spaces.

  • In-house expertise, design software, tooling and equipment.


We can be contracted for any type of balustrading design brief to create a solution to suit your existing site conditions. Be choosning ENCAT as your balustrade manufacturer you get to deal directly with the factory rather than indirectly through contractors or other 3rd parties. It means that every element is designed to meet all the required local government regulations and you can ensure tight control over production quality.

We offer a range of stainless or galvanised steel designs that can be supplied as modular pieces to minimise maintenance requirements. Our galvanised balustrade systems are perfectly suited to either industrial or commercial sites & can be powder coated if required to match the colouring of the surrounding infrastructure.

For an obligation free discussion, contact our team or send us a quote request

View our range of balustrade and handrail products

Fasterrail full balustrade
ENCAT Brochure tiles 5
Fasterrail Cycleway full balustrade
ENCAT Brochure tiles 4
SEE5 C5 crowd loading balustrade
Border5 C5 crowd loading balustrade
Select balustrade
Reeds balustrade
Market Balustrade
Ocean Wave Balustrade

See examples of our recent installations we have helped to complete

Frequently asked questions about Fasterail Full Balustrade

Yes ENCAT designs and manufactures everything in NSW. We have a purpose built steel manufacturing facility and use local knowledge and expertise to produce products suitable for local laws or regulations and our conditions.
